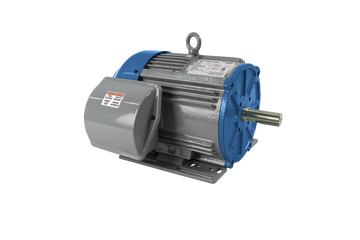

V Series Motor  by FUTURE MOTORS LIMITED

Model number: V01

Features

Technology

Motors, Drives & Fans

Subtechnology

Converter-fed motors

Date added to ETL

15 July 2021

Product category

Matched converter-fed motor drive packages

Supply Input

Multi-phase

Rated power output (kW)

2.2

Number of poles

2

Rated operating voltage of the motor (V)

415

Efficiency of motor and drive combined (%)

87.9

Test standard used

Method 2-1-2A according to Table 4 in Section 7 of BS EN 60034-2-1:2014

Is the product designed to be connected to the UK public electricity supply (or equivalent AC source)?

Yes

Does the product incorporate an electronic VSD?

Yes

Does the VSD comply with the published ETL criteria?

yes

Motor type

Other

If other, please specify:

Switch Reluctance

Does the product comprise two factory assembled units that are designed to be connected together during installation?

Yes

Does the product incorporate any mechanical apparatus that derives motive force from the motor, except fans or pumps incorporated for product cooling or lubrication, integrated torque couplings, and position encoding mechanisms?

no

Does the product have an appropriate Conformity Assessment mark?

yes

Uniclass codes
