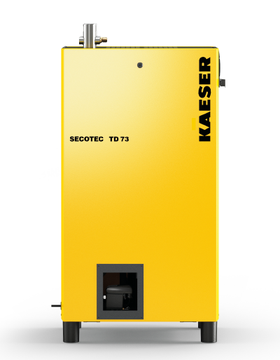

Secotec Refrigeration Dryer
by HPC Compressed Air Systems
Model number: TD73
Manufacturer
HPC Compressed Air Systems
Victoria Gardens
Burgess Hill
West Sussex
Email compressors.co.uk Telephone 01444 241671
Features
- Technology
- Compressed Air Equipment
- Subtechnology
- Refrigerated Air Dryers with Energy Saving Controls
- Date added to ETL
- 15 January 2023
- Total electrical Power rating (kW)
- 0.95
- Pressure Drop across dryer at 100% Load (bar)
- 0.13
- Air Flow at 100% Load (m³/min)
- 7.3
- SEC at 100% Load (kW/m³/min)
- 0.35
- Energy Saving Mechanism
- Chill Mass with Temperature switch
- Thermal Mass
- Solid - Integral of Heat Exchanger Mass
- Sensor
- Temperature Transducer
- Integrated Filters
- No
- Does the product automatically control output between 20% and 100% in response to changes in air flow rate and/or temperature of the inlet air and/or outlet air?
- Yes
- Does the product conform with the requirements of The Pressure Equipment (Safety) Regulations 2016 in respect of its design, manufacture and testing procedures, or have an appropriate Conformity Assessment mark?
- Yes
- Does the product have a dew point rating of less than or equal to +3ºC?
- Yes
- Is the products performance data based on representative testing?
- Yes
- If so, please state the product name and model number of the representative unit.
- TE122
Uniclass codes
| Code | Title |
|---|---|
| Pr_65_67_16_71 | Refrigerant air dryers |
